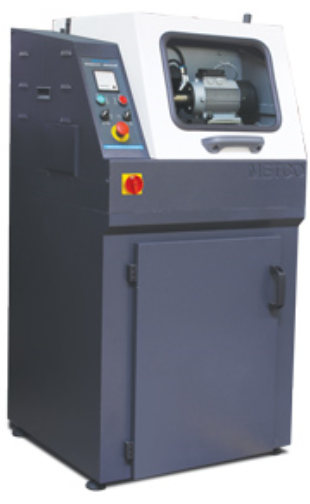

PrecisionCut 3 Metallurgical Saw from Porosity Solutions
Floor model, 3hp, 2800 rpm, 10” wheel – cut-off saw for sectioning of metals, ceramics, and mineral samples.

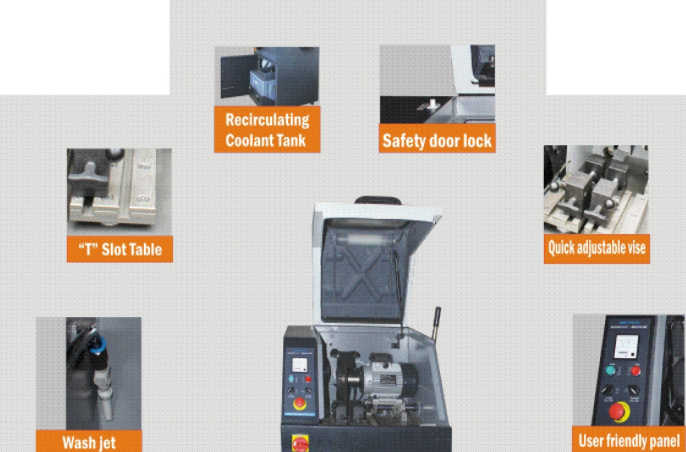

The saw comes stock with features only found on cut-off saws costing thousands of dollars more. Some of the key features include:
- Internal illumination with viewing window
- Auto wash system
- Side door for cutting long bar
- Recirculation coolant system
- Safety door shut-off
- Cam-Vise set
- T-slot bed
- Cutting capacity of up to 60mm thick samples
- Motor brake for safety
- CE certified
- Comes with 10 abrasive wheels
Specifications:
- 3hp 3 phase 440v motor
- Spindle speed 2800 rpm
- Simple control panel with Start, Stop, Coolant, Light, and E-Stop switches
- Cut-off wheel max diameter 10”
- 1/3rd hp coolant pump
- Recirculating coolant system
- Built-in but movable 13 gallon coolant tank
- Twin fluid nozzles to prevent overheating of sample while cutting
- Corrosion resistant cutting chamber
- Splash proof, corrosion resistant hood with viewing window
- Fluorescent illumination of work area
- Machine size 33.5”W by 29.5” D by 61”H
- Sectioning capability of metals, ceramics, and mineral samples
- Auto wash system
- Side door for cutting long bar
- Safety door shut-off
- Cam-Vise set
- T-slot bed
- Cutting capacity of up to 60mm thick samples
- Motor brake for safety
- Fully protected electrical relays
- CE certified
- 1 year parts and labor warranty
